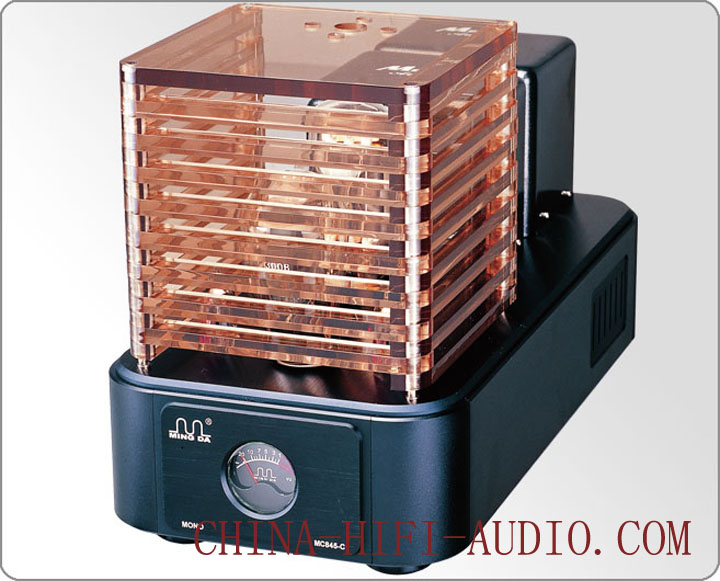

Meixing Mingda MC845-C 300B 845 Class A single-end Tube Dual Monoblock Power Amp

Meixing Mingda MC845-C Class A vacuum Tube Monoblock Power Amplifier a pair 2011 upgrade version (20th Anniversary Edition)
100% Brand New

Declaration

All items guaranteed 100% BRAND NEW in the original edition Box.

ONE-YEAR WARRANTY !!!

Features:

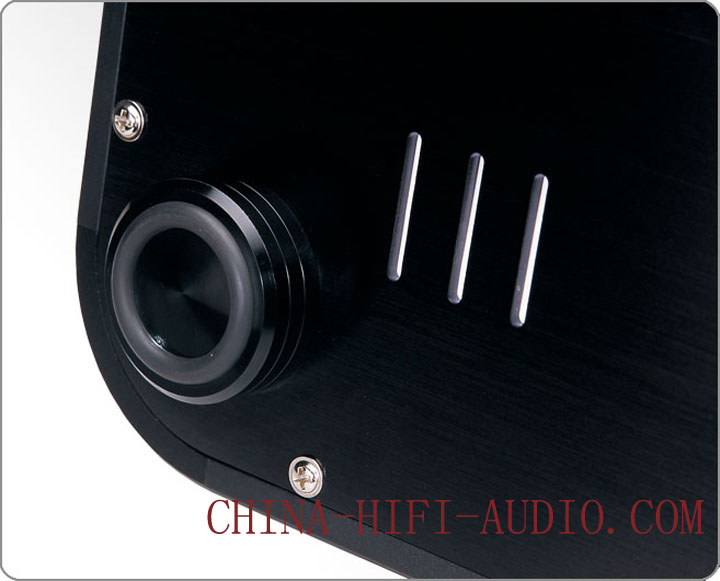

a)The updated products is a symbol that Meixing Factory is coming to a new level.It is produced meticulously,using the Fanuc CNC and lathe bought from Japan at the end of 2010.The entire case is made with a 6mm thick aluminum alloy and the machine feet consists of aluminum alloy as well as the shockproof rubber ring.

b)The factory chooses the chief electronic script.For example,the electronic tube adopts tube 300B from Tianjin.The tube 6SN7 is made by Meixing Factory and the annealed silicon steel imported as well as anaerobic copper wire against high temperature from Janpan.The other materials included in this product is as follows:Jensen copper oil capacitors from Denmark,imported slivering signal line,imported connector,imported aluminum electrolytic capacitor of high pressure,remote controlled handle made by aluminum,imported protective cover of Acrylic and the machine is produced by hand-welded.

c)The intermediate frequency peforms excellent with a clear and bright tone quality,as well as the good sense of rhythm.We provides HiFi stereo over 86dB and it is valuable to have one.

Specifications:

Output Power: 20W
Sensitivity: 1000mv

Output Impedance: 4Ω、8Ω

Input Impedance: 100K

Distortion Factor: ≤0.9%
Signal-to-Noises: 88dB

Power Dissipation: 190W
Inputs: 1 Group

Outputs: 2 Groups

Frequency: 18Hz ～ 35KHz±1dB

Vacuum Tubes: 300B x1(full music)845BSE(Special)×1(JJ) ECC83×1(JJ) ECC82×1

Power supply voltage: 110/220V 60Hz/50Hz(100V, 110V, 120V, 230V, 240V version will take 3-14 work days to order), 110V and 220V version are in stock

Net Dimensions : L50 x W23 x H25 cm

Vacuum tube Packing size: L48 x W34 x H32 (cm)

Carton Size ：(L64 x W39 x H46 cm) x 2

Vacuum tube Packing weight: 6.5kg

Net weight : 22kg

Gross weight : 25kg x 2 = 50kg

Total weight: 50kg + 6.5kg = 56.5kg
